UTP-221 Series

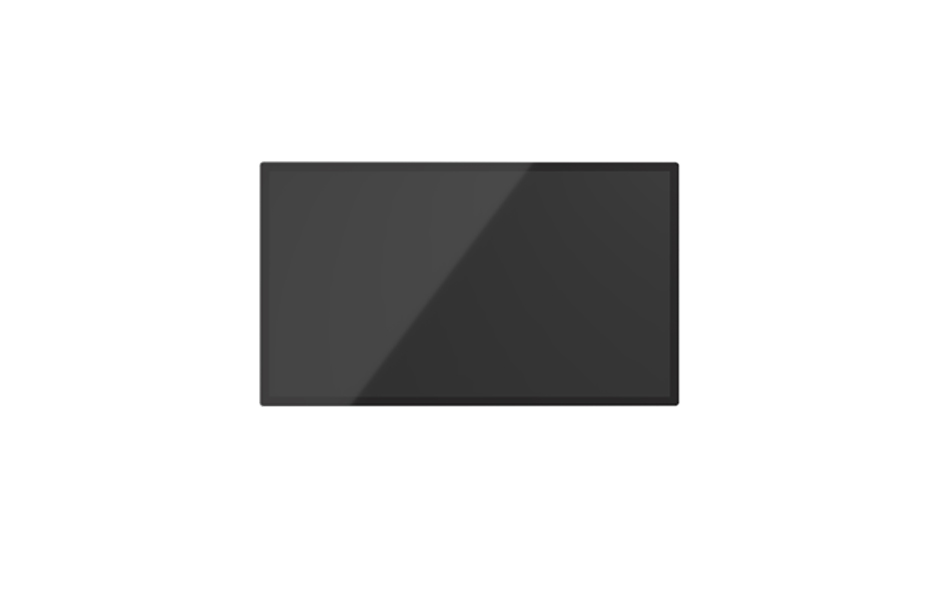

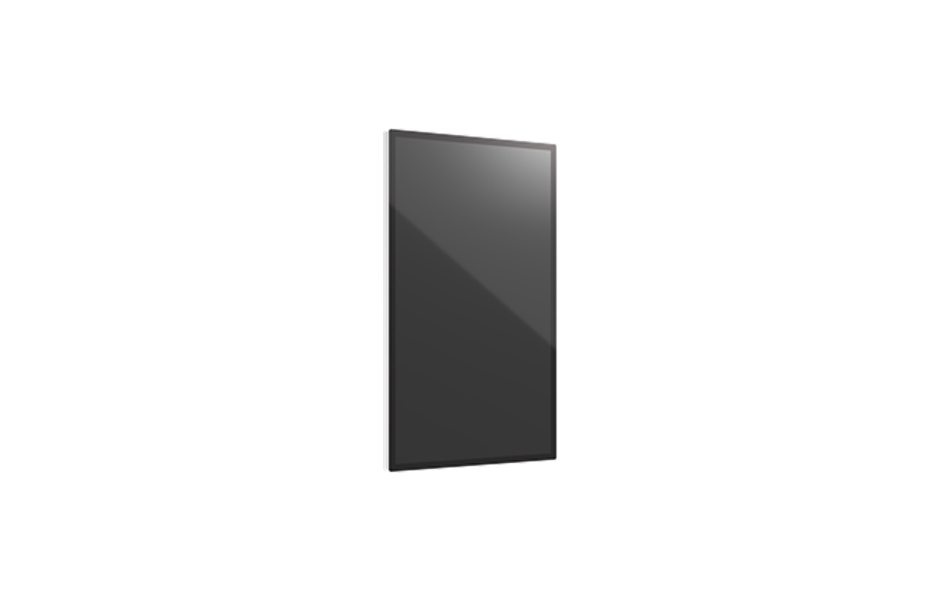

The UTP series is a multi-function touch all-in-one machine with 16:9 widescreen display and hd LED panel, which is easy to integrate core peripheral equipment and display system. It is suitable to be used as diversified self-service terminals and various interactive multimedia terminals to meet the needs of different application fields. UTP touch all-in-one machine is the best choice to improve user satisfaction, enhance brand value and help maximize business profit.

Specifications

Processor System

CPU

ARM Cortex-A9



Base Frequency

1.6 GHz(Quad-Core)



Memory

1 x SO-DIMM DDR3 up to 1GB



LED Display

Size/Type

21.5″  LED



Max.Resolution

1920 x 1080



Stereo Speaker

3 W x 2



Network(LAN)

LAN x 1



WiFi 802.11b/g/n



I/O Ports

1 x USB 2.0 with OTG

3 x USB 2.0

1 x SD



OS Support

Android 4.4



Power

Input Rating

12VDC,±10%

AC to DC,DC12V/1.5A,18W



Dimensions (W x H x D)

538 x 331 x 37mm



Weight

3.6 kg



Environmental Specifications

Operating Temperature

0 ~ 40° C (32 ~ 104° F)



Relative Humidity

80% @ 40° C non-condensing



Vibration

0.3 Grms,IEC 60068-2-64,random,5~500Hz,3 axes,1hr/axis



Shock

10 G,IEC 60068-2-27
