GODEX  EZ120

Overview

EZ100 series offers robust mechanism and simple operation methods for
printing retail, warehouses, logistic & transportation, government &
administration labels and tags.

Sleek outlines and best choice for value.

Supports 300 meter ribbon and 10 inch diameter label stand available for bulk printing.

Dual sensors enable instant label / ribbon detection.

Reliable structure and slick outline contributed sheer simplicity.

Specifications

Print Method:

Thermal Transfer / Direct Thermal

Resolution:

203 dpi (8 dots/mm)

Print Speed:

4 IPS (102mm/s)

Print Width:

108 mm (4.25″)

Print Length:

Min. 0.16” (4 mm); Max. 68” (1727 mm)

Processor:

32 bit RISC CPU

Memory:

8MB Flash (4MB for user storage) / 16MB SDRAM

Sensor Type:

Adjustable reflective sensor

2 fixed transmissive sensors, central aligned

Media:

Types:Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming

Width:1” (25.4 mm) Min. – 4.64” (118 mm) Max.

Thickness:0.003” (0.06 mm) Min. – 0.01” (0.25 mm) Max.**

Label Roll Diameter:Max. 5” (127 mm)

Core Diameter:1” (25.4 mm), 1.5” (38.1mm), 3” (76.2mm)

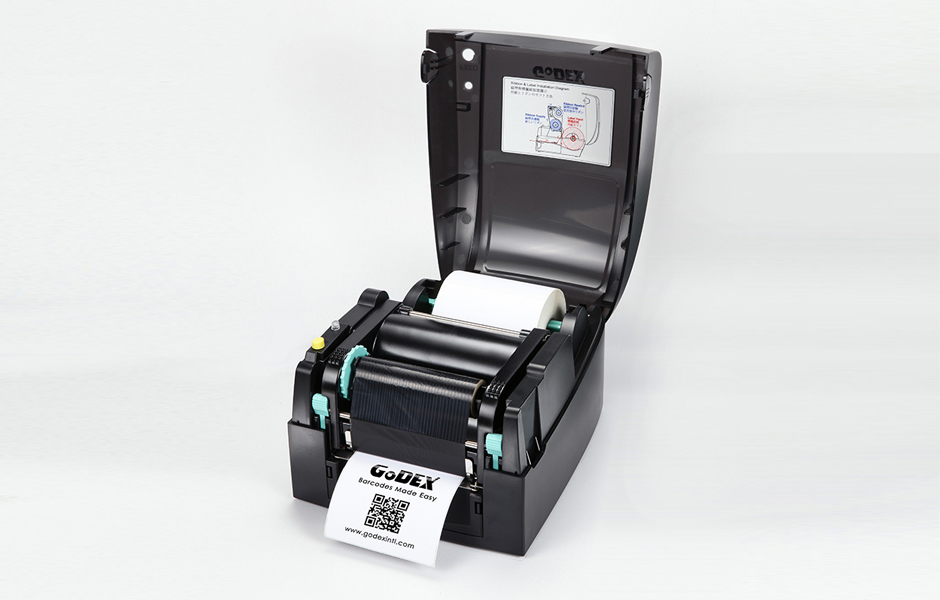

Ribbon:

Types:Wax, wax / resin, resin

Length:981’ (300 m)

Width:1.18” Min. – 4.33” (30 mm – 110 mm) Max.

Ribbon Roll Diameter: 2.67“ (68 mm)

Core Diameter:1” (25.4 mm)

Printer Language:

EZPL, GEPL, GZPL auto switch

Software:

Label Design Software:GoLabel (for EZPL only)

Driver:MAC、 Linux、Windows 2000, XP, Vista, Windows 7, 8.1 and 10 , Windows Server 2003, 2008 & 2012

DLL:Win CE, .NET, Andriod, Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1/Windows 10

Resident Fonts:

Bitmap Fonts: Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B , Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable , Bitmap fonts 8 times expandable in horizontal and vertical directions

TTF Fonts: TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable

Download Fonts:

Bitmap Fonts: Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable

Asian Fonts: 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions

TTF Fonts: TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable

Barcodes

1-D Bar codes: Code 39, Code 93, EAN-8, EAN-13, EAN 8/13 (with 2 & 5 digits extension), UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extension, Interleaved 2-of-5 (I 2 of 5), Interleaved 2- o-f 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Postnet, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, ISBT – 128 , Code 32

2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code, Code 49, Codablock F , TLC 39

Code Pages:

CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737

WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257

Unicode UTF8、UTF16BE、UTF16LE

Graphics:

CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737

Interfaces:

USB Device (B-Type)

Control Panel:

One Tri-color LED : Power (Green, Orange and Red)

Function Key : FEED

Power:

Auto Switching 100-240VAC, 50-60Hz.

Environment:

Operation Temperature: 41°F to 104°F (5°C to 40°C)

Storage Temperature: -4°F to 122°F (-20°C to 50°C)

Humidity:

Operation: 30-85%, non-condensing.

Storage: 10-90%, non-condensing.

Agency Approvals:

CE (EMC), FCC Class A, CB, CCC, UL, cUL

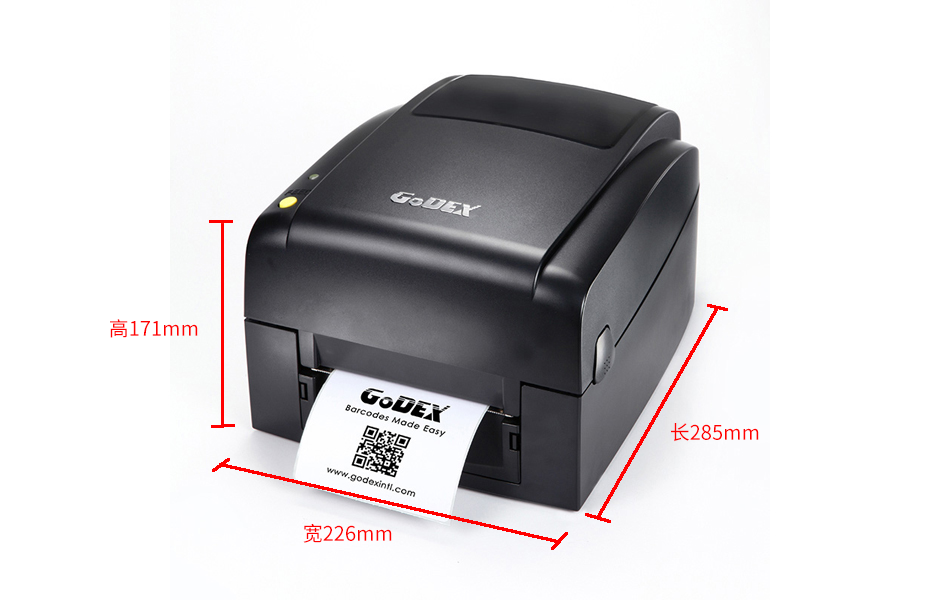

Dimension:

Length: 11.2” (285 mm)

Height: 6.8” (171 mm)

Width: 8.9” (226 mm)

Weight:

6 lbs (2.72 Kg) ,excluding consumables

Options:

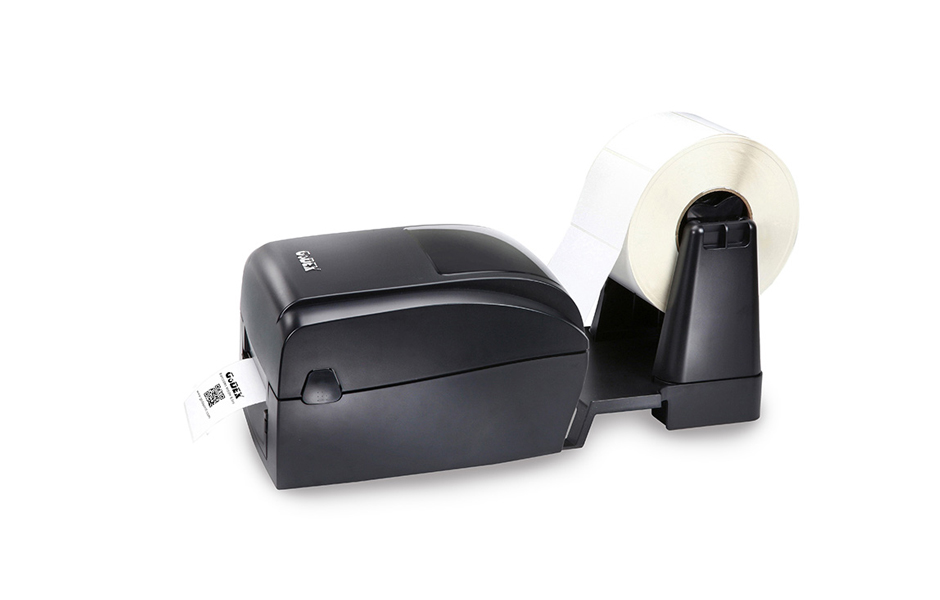

External label roll holder for 10” (250 mm) O.D. label rolls

Note:

External label roll holder for 10” (250 mm) O.D. label rolls

External label rewinder T10
