ZD410-HC SPECIFICATIONS CHART
Standard Features
- Direct Thermal print method
- IEC 60601-1 compliant power supply and healthcare wipeable plastics
- ZPL and EPL programming languages
- 5 status icon, 3 button user interface
- USB 2.0, USB Host
- Bluetooth low energy
- OpenACCESS™ for easy media loading
- Dual-wall frame construction
- ENERGY STAR qualified
Physical Characteristics

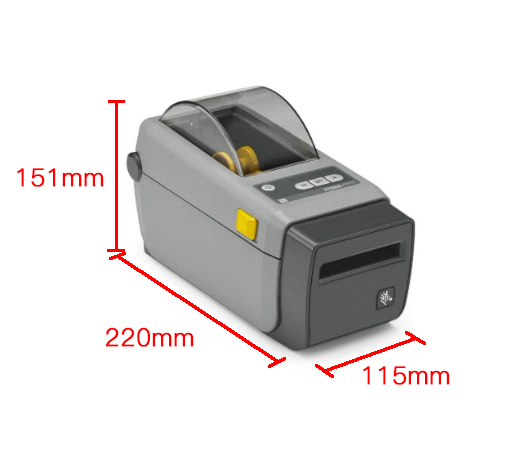

Dimensions
8.6 in. L x 4.5 in. W x 6.0 in. H
220 mm L x 115 mm W x 151 mm H
Weight
2.2 lbs./1.0 kg
Printer Specifications
Resolution
203 dpi/8 dots per mm
Optional 300 dpi/12 dots per mm
Memory
512 MB Flash; 256 MB SDRAM
Maximum Print Width
2.2 in./56 mm for 203 dpi and 300 dpi
Maximum Print Speed
6 in./152 mm per second (203 dpi)
4 in./102 mm per second (300 dpi)
Media Sensors
Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor
Firmware
ZPL II; EPL 2; EPL Line Mode; XML; ZBI
Media Characteristics
Maximum Label Length
39.0 in./991 mm
Maximum Label and Media Length
2.36 in./60 mm
Media Roll Size
5.00 in./127 mm outer diameter
Core inner diameter: 0.5 in. (12.7mm) and 1.0 in. (25.4mm) standard, 1.5 in. (38.1), 2.0 in., (50.8mm) and 3.0 in. (76.2mm) using optional adapters
Thickness
0.003 in./0.08 mm – 0.012 in./0.305 mm
Media Types

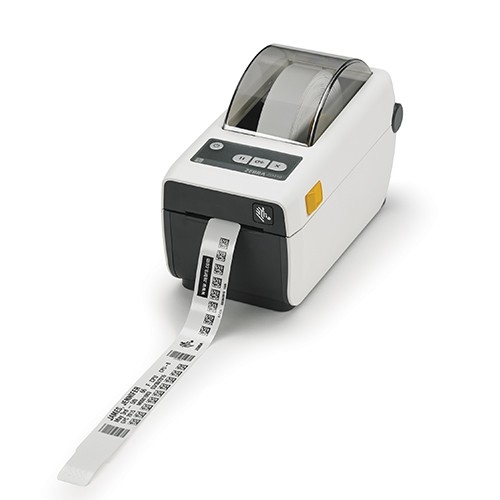

Roll-fed or fan-fold, die cut or continuous direct thermal labels with or without black mark, tag stock, continuous receipt paper, and wristbands
Operating Characteristics
Operating Temp.
40° to 105° F/4.4° to 41° C
Storing Temp.
-40° to 140° F/-40° to 60° C
Operating Humidity
10% to 90% non-condensing
Storage Humidity
5% to 95% non-condensing
Electrical
Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified; optional 2750 mAh battery
Options and Accessories
Media Handling
Field installable dispenser — label peel and present with label present sensor; field installable cutter
Communications
Field installable RS-232 auto-sensing Serial, DB-9; Factory installed or field installable Ethernet — 10/100 internal; factory installed wireless dual radio:802.11ac Wi-Fi and Bluetooth 4.1; Bluetooth Low Energy included as standard on network connected models
Battery
Provides power to the printer to support a full shift of printing at maximum print speed; supports all media handling options
Real Time Clock
Included as standard on network connected models
Keyboard Display Unit
ZKDU keyboard display units for stand-alone printing solutions
Mounting Plate
Optional accessory to secure ZD Series printers to countertops or shelves
Fonts/Graphics/Symbologies
Barcode Ratios
2:1 and 3:1
1D Barcodes
Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code
2D Barcodes
Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
Fonts and Graphics
16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts,five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font
64 MB user available non-volatile memory, 8 MB user available SDRAM
